This is a dual band WLAN terminal antenna operating at 2.4 and 5 GHz frequency bands and ideal |
for fixed and mobile WLAN terminals.It is a dual band WLAN terminal antenna operating at |

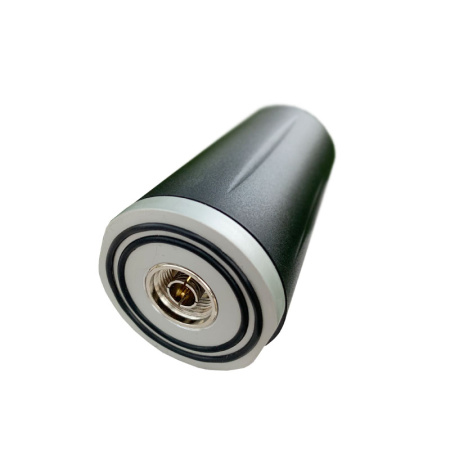

2.4 – 2.5 GHz and 4.9-5.8 GHz. Compact, groundplane independent terminal antenna with a N-Male |
connector and is suitable for access points, gateways and terminals that require a dual band antenna |
for WLAN applications. For single band terminal antennas for WiFi, it might be a suitable option. |
This antenna has a gain of 3 dBi and a VSWR of less than 2:1 across the bands. |
When fully extended,the overall length of the antenna is less than 100mm. |
The compact design means that the antenna is a discreet solution for mobile applications where larger |
dual-band antennas could cause an obstruction or be cumbersome. |
