Connect Everything Possible
Full metal fashionable texture creates quality, one-piece molded metal shell of zinc alloy and aluminum alloy
Three-point helical locking mechanism, excellent sealing. Maintains strong waterproof performance even in harsh outdoor weather. IP65/IP67 protection rating in mated condition. High quality ensures uninterrupted operation of your industrial equipment。
Wave spring knob design, outer ring detents engage with socket latches for easy and convenient plug/socket connection, uniform mating force, and stable current and signal transmission
This connector, following technical operating procedures, underwent 2000 mating/unmating cycles in UL/TUV authorized laboratories. Electrical performance remained essentially unchanged, meeting standard requirements
Gold-plated copper alloy contacts, enhanced durability, corrosion resistance, and superior conductivity

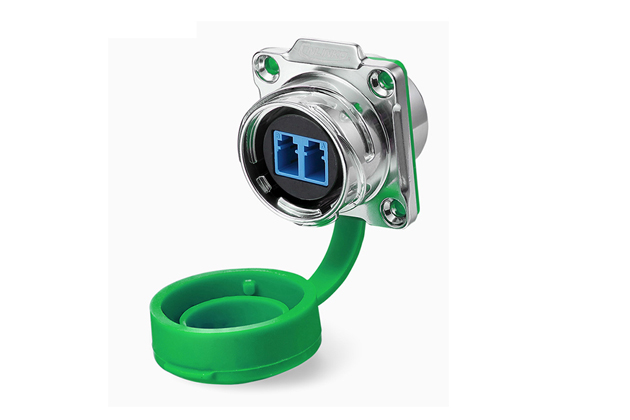

| Model: | DH-24 | Pin: | Fiber Optic |
| IP Rating: | IP68 / IPX9K | Rated Current: | / |
| Rated Voltage: | / | Withstand Voltage: |
/
|
| Contact Resistance Max: | / | Insulation Resistance Min: |
/
|
| Contacts: | / | Durability: |
≥500 times
|
| Wire Spec Max: | 1.5mm²/16AWG | Wire range: | (Ф5.0-Ф6.5）mm |
| Wiring method: | Direct-through | Maximum temperature rise: | / |
| Work Temperature: | -40°C~+85°C |
Please note: To access more detailed specifications and parameter tables, please proceed to the Download Center for viewing and downloading.
