Connect Everything Possible

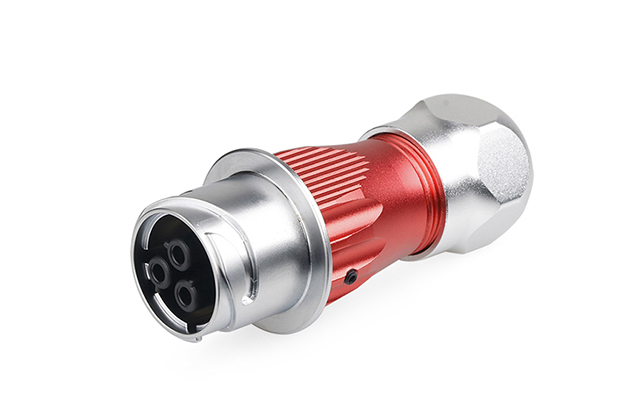

Full metal fashionable texture creates quality, one-piece molded metal shell of zinc alloy and aluminum alloy
Our design features a wave spring rotating buckle and a three-point spiral locking system. The outer ring's snap points tightly engage with the receptacle's buckle, ensuring more stable current and signal transmission.
The plug contacts are made with high-performance gold-plated copper pins, offering excellent oxidation and corrosion resistance for rapid and reliable signal transmission.
The bayonet coupling process uses a three-point spiral locking connection, providing a secure and stable fit suitable for various anti-mechanical shock environments.
The DZ series offers a range of application types, including power, signal, fiber optic, and data, to meet the diverse needs of different users.
| Model: | DZ-24 | Pin: | 3 Pin |
| IP Rating: | IP68 /IPX9K | Rated Current: | 25A / 35A / 45A |
| Rated Voltage: |
300V AC
|
Withstand Voltage: |
1500V AC
|
| Contact Resistance Max: | 1.0mΩ | Insulation Resistance Min: |
≥500MΩ
|
| Contacts: | φ3.0*3（25A / 35A） φ3.5*3（45A） |
Durability: |
≥2000 times
|
| Wire Spec Max: | 2.5~4.0mm²/14~12AWG（25A） 6.0~8.0mm²/10~8AWG（35A） 8~10mm²/8~6AWG（45A） |
Wire range: | Ф10.0-Ф12.0mm |
| Wiring method: | Screwing | Maximum temperature rise: |
Temperature rise below 30K at 25A / 35A / 45A
|
| Work Temperature: | -40°C~+85°C |
Please note: To access more detailed specifications and parameter tables, please proceed to the Download Center for viewing and downloading.
