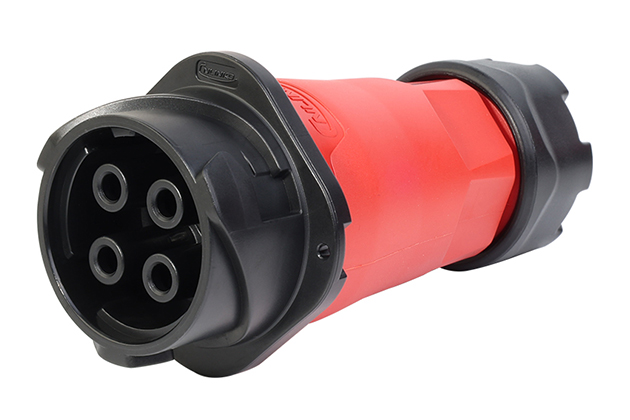

The All-Plastic 'Little Giant': Powering High Currents, Big Performance
Born for corrosion resistance, a powerful performer for corrosive environments
Compared with conventional IEC 60309 , the DL28 series offers double the current, while its external dimensions are nearly 50% smaller, giving it a greater advantage in small space installations.
Using screw bayonet connection, the new anti-loosening outer ring structure achieves "double insurance" for more secure locking and firmly prevents loosening.
With a large M28 size, the DL28 connector is suitable for designing contacts and female pins with bigger sizes, satisfying users’ requirements for high-current and high-power transmission
Anti-electrocution design prevents accidental contact with copper conductors and reduces the risk of electric shock.
| Model: | DL-28 | Pin: | 4 Pin |
| IP Rating: | IP68 | Rated Current: | 50A |
| Rated Voltage: | 690V AC | Withstand Voltage: | 3000V AC |
| Contact Resistance Max: | 1.0mΩ | Insulation Resistance Min: | 500MΩ |
| Contacts: | φ4.0*4 | Durability: | ≥2000 times |
| Wire Gauge： | 10mm²/8 AWG | Wire range: | φ17.5~20.5 mm |
| Wiring method: | Screwing | Maximum temperature rise: | 50K |
| Work Temperature: | -25°C~+85°C |
Please note: To access more detailed specifications and parameter tables, please proceed to the Download Center for viewing and downloading.
