Connect Everything Possible

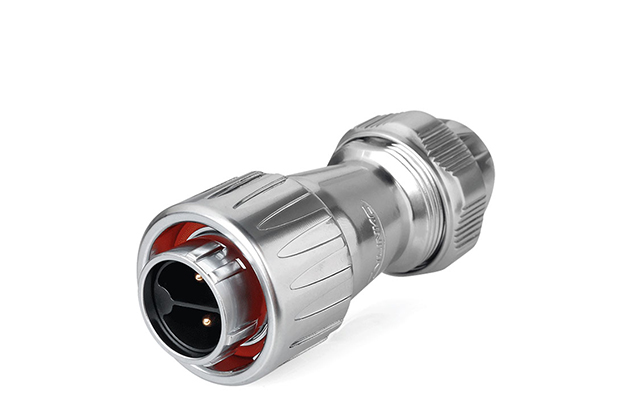

Full metal fashionable texture creates quality, one-piece molded metal shell of zinc alloy and aluminum alloy
Our design features a wave spring rotating buckle and a three-point spiral locking system. The outer ring's snap points tightly engage with the receptacle's buckle, ensuring more stable current and signal transmission.
The plug contacts are made with high-performance gold-plated copper pins, offering excellent oxidation and corrosion resistance for rapid and reliable signal transmission.
The bayonet coupling process uses a three-point spiral locking connection, providing a secure and stable fit suitable for various anti-mechanical shock environments.
The DZ series offers a range of application types, including power, signal, fiber optic, and data, to meet the diverse needs of different users.
| Model: | DZ-20 | Pin: | 2 Pin |
| IP Rating: | IP68 /IPX9K | Rated Current: | 20A |
| Rated Voltage: |
300V AC
|
Withstand Voltage: |
2000V AC
|
| Contact Resistance Max: | 1.0mΩ | Insulation Resistance Min: |
≥500MΩ
|
| Contacts: | φ2.7*2 | Durability: |
≥2000 times
|
| Wire Spec Max: | 2.5~4.0mm²/12~14AWG | Wire range: | Ф10.0-Ф12.0mm |
| Wiring method: | Soldering | Maximum temperature rise: |
Temperature rise below 30K at 20A
|
| Work Temperature: | -40°C~+85°C |
Please note: To access more detailed specifications and parameter tables, please proceed to the Download Center for viewing and downloading.
