Master of connectivity in small spaces

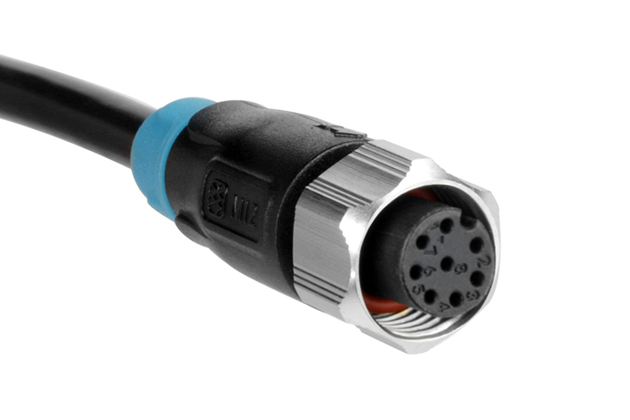

The connector plug tail and cable are integrated using a one-piece molding process
Connector plug tail and cable integrated molding process, high molding quality, tensile and bending resistance for enhanced durability, integrated cable for simple and quick, no-wiring installation
Engineered to industrial waterproof standards, withstands water, moisture, and dust intrusion in outdoor and industrial environments
With a foundation of 20+ years of CNLINKO industrial connector technology, provides consistently strong and efficient connections in severe outdoor and industrial conditions, a definitive performance champion
Threaded connection, utilizing screw interlock and tight engagement for a more secure and reliable connection and locking, eliminating concerns about loosening or disconnection
| Model: | LM-12 | Pin: | 8 Pin |
| IP Rating: | IP68 | Rated Current: | 3A |
| Rated Voltage: | 30V AC | Withstand Voltage: | 1000V AC |
| Contact Resistance Max: | 5.0mΩ | Insulation Resistance Min： | 500MΩ |
| Durability: | ≥2000 times | Wire Spec： | 0.14~0.25mm2 / 24~26AWG |
| Wire range: | / | Maximum temperature rise: | 30k |
| Contacts: | Φ 0.8*8 | Work Temperature: | -25°C~+85°C |
Please note: To access more detailed specifications and parameter tables, please proceed to the Download Center for viewing and downloading.
