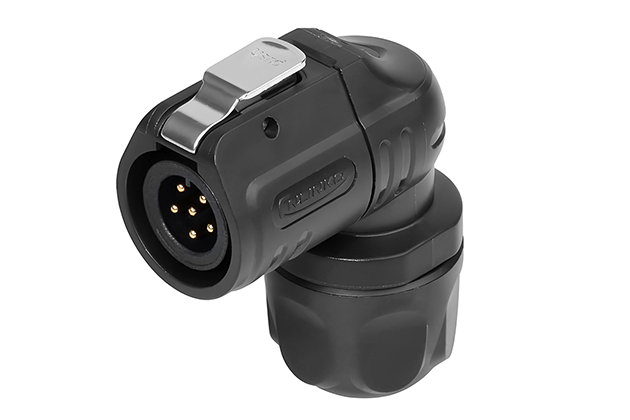

90° Space-Saving Connection New Breakthrough in Patented Protection
Attention to detail | Craftsmanship quality
Dual-side waterproof design, certified under IP68 (dust-tight & water submersion) and IPX9K (high-pressure scalding water jets) standards – not just waterproof, but also resistant to high-temperature, high-pressure water streams.
New optimized structure enables fast installation/removal and greatly improves assembly & wiring efficiency.
Exceeding the standard 500-cycle norm, the mating life reaches over 2000 cycles, with all electrical properties maintaining high stability that meets regulatory requirements.
Inheriting the innovative DNA of the LP series, we deliver more competitive products to users through original patented technologies.
| Model: | LP-12 | Pin: | 6 Pin 90° |
| IP Rating: | IP68 / IPX9K | Rated Current: | 5A |
| Rated Voltage: | 125V AC | Withstand Voltage: | 1500V AC |
| Contact Resistance Max: | 5.0mΩ | Insulation Resistance Min: | 500MΩ |
| Contacts: | φ1.0*6 | Mating Cycles: | ≥2000 times |
| Wire Spec Max: | 0.34-0.5mm2 / 22-20AWG | Wire range: | φ 5.0-φ 7.0mm |
| Wiring method: | Soldering | Maximum temperature rise: | 30k |
| Work Temperature: | -25°C~+85°C（Plastic） |
Please note: To access more detailed specifications and parameter tables, please proceed to the Download Center for viewing and downloading.
