Push-lock connection design, plug-and-play
Reliable contact resistance design,
and optimized mating force design significantly enhance data transmission speed
The product boasts an IP68 IP Rating, delivering advanced waterproofing performance and robust protection for harsh, water-exposed environments.
Gold-plated contacts | High-performance material housing | Spring snap-lock design | Industrial-grade standard manufacturing.

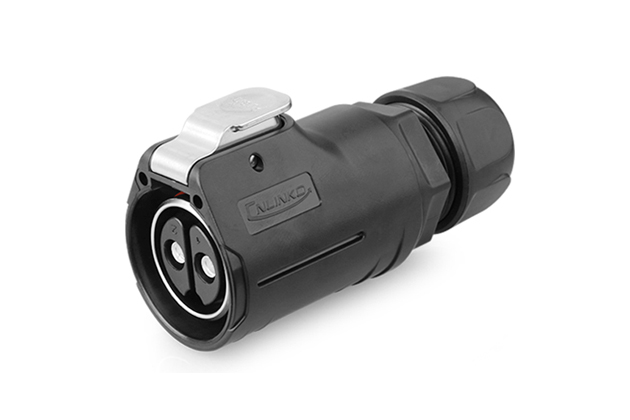

Featuring a one-touch snap-lock connection design, enabling single-handed plug-and-play operations for more efficient and rapid connections, simplifying operations.
Utilizing solid copper alloy pins with nickel underplating and gold plating, enhancing plug-and-play durability, corrosion resistance, and superior electrical conductivity.
| Model: | LP-28 | Pin: | 2 Pin |
| IP Rating: | IP68 / IPX9K | Rated Current: | 50A |
| Rated Voltage: | 500V AC | Withstand Voltage: | 2000V AC |
| Contact Resistance Max: | 1.0mΩ | Insulation Resistance Min: | ≥500MQ |
| Contacts: | φ2.7*2 | Durability: | ≥ 2000 times |
| Wire Spec Max: | 10~16mm2/8~6AWG | Wire range: | (Φ17.5-Φ20.5)mm |
| Wiring method: | Riveting / Screwing | Maximum temperature rise: | The temperature rise is below 50K at 50A |
| Work Temperature: | -25°C~+85°C（Plastic） -40°C~+85°C（Metal） |
Please note: To access more detailed specifications and parameter tables, please proceed to the Download Center for viewing and downloading.
