Push-lock connection design, plug-and-play
Reliable contact resistance design,
and optimized mating force design significantly enhance data transmission speed
Gold-plated contacts | High-performance material housing | Spring snap-lock design | Industrial-grade standard manufacturing.
The product boasts an IP68 IP Rating, delivering advanced waterproofing performance and robust protection for harsh, water-exposed environments.
Featuring a one-touch snap-lock connection design, enabling single-handed plug-and-play operations for more efficient and rapid connections, simplifying operations.
Complies with UL94 V-0 flame retardancy, high-standard IP68 waterproof/fireproof/UV protection

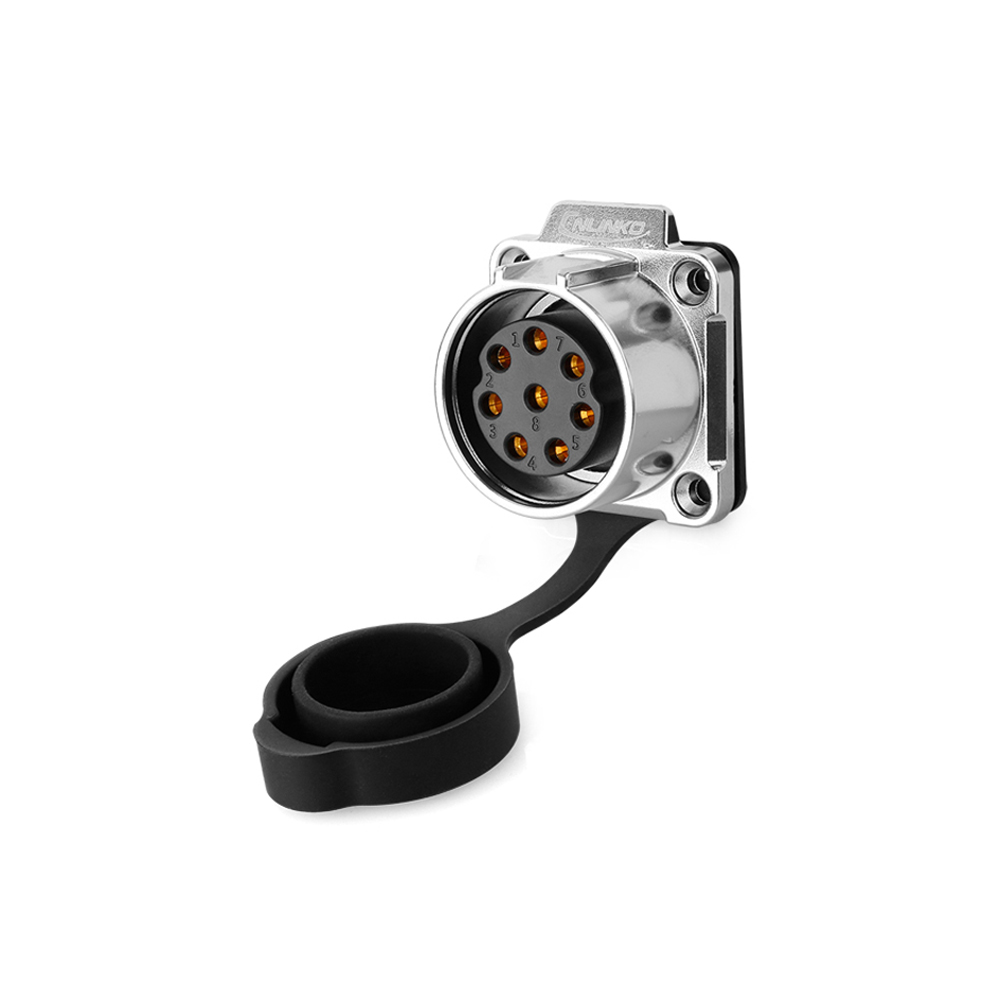

| Model: | LP-28 | Pin: | 8 Pin |
| IP Rating: | IP68 / IPX9K | Rated Current: | 15A |
| Rated Voltage: | 300V AC | Withstand Voltage: | 2500V AC |
| Contact Resistance Max: | 1.0mΩ | Insulation Resistance Min: | ≥500MQ |
| Contacts: | φ3.0*8 | Durability: | ≥ 2000 times |
| Wire Spec Max: | 2.5-4.0mm2/14-124WG | Wire range: | Φ10.0-Φ15.0mm |
| Wiring method: | Soldering | Maximum temperature rise: | 1Temperature rise below 30K at 5A |
| Work Temperature: | -25°C~+85°C |
Please note: To access more detailed specifications and parameter tables, please proceed to the Download Center for viewing and downloading.
