YU Series USB & Type-C Multi-ModuleIndustrial Grade Connectors
Perfect combination of precision components, uniquely crafted into a seamless whole
The plug and socket connection and dust cap have been upgraded from a 2-point bayonet to a 3-point bayonet, making the product connection more stable and secure.
Built with self-developed deep waterproofing technology for industrial connectors, the product achieves an IP67 protection rating, providing waterproof and dustproof protection for complex industrial and outdoor environments
Made with high-quality imported plastic, precision injection molded, and tightly assembled to create a highly corrosion-resistant housing, with a salt spray test duration of ≥48 hours, capable of withstanding environmental corrosive substances
With strict standards and exquisite craftsmanship, we achieve high quality and performance for industrial-grade connectors, providing continuous and stable connections in various harsh working environments

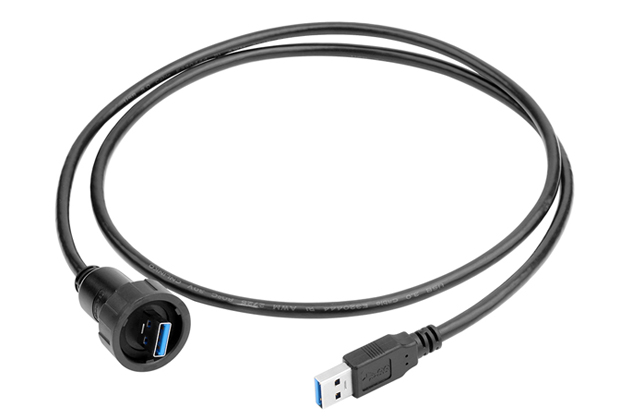

| Model: | YU-USB3.0 | Pin: | Other |
| IP Rating: |
IP68 / IPX9K
|
Rated Current: | 2A |
| Rated Voltage: | 100V AC | Transmission Rate： |
5.0Gb/S
|
| Contact Resistance Max: | / | Insulation Resistance Min: |
/
|
| Contacts: | / | Durability: |
≥500 times
|
| Wire Spec Max: |
24-28AWG
|
Wire range: | φ 4.5-φ5.5mm |
| Wiring method: | Soldering | Maximum temperature rise: |
1.Temperature rise below 30K at 2A
|
| Work Temperature: | -40°C~+85°C |
Please note: To access more detailed specifications and parameter tables, please proceed to the Download Center for viewing and downloading.
