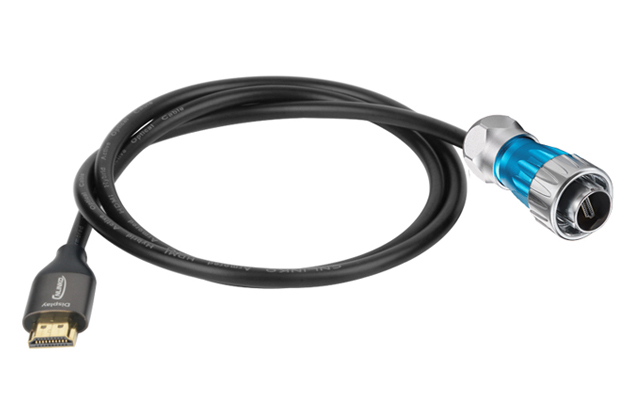

Ultra-high definition image transmission | Excellent waterproof function
Perfect combination of precision components, uniquely crafted into a seamless whole
Unaffected by wind and rain, performs well in harsh indoor and outdoor environments. Enhanced protection when closed
This connector, following technical operating procedures, underwent 2000 mating/unmating cycles in UL/TUV authorized laboratories. Electrical performance remained essentially unchanged, meeting standard requirements
Wave spring knob design, outer ring detents engage with socket latches for easy and convenient plug/socket connection, uniform mating force, and stable current and signal transmission
CNLINKO upholds environmental principles, selecting "green enterprise" certified electroplating suppliers to ensure all CNLINKO electroplated components are produced with eco-friendly processes
| Model: | DH-24 | Pin: | 单芯 |
| IP Rating: | IP68 / IPX9K | Rated Current: | 0.5A |
| Rated Voltage: | 5V AC | Withstand Voltage: |
/
|
| Contact Resistance Max: | / | Insulation Resistance Min: | ≥500mΩ |
| Contacts: | / | Durability: |
≥500 times
|
| Wire Spec Max: |
26AWG
|
Wire range: | / |
| Wiring method: | Direct-through | Maximum temperature rise: | 0.Temperature rise below 30K at 5A |
| Work Temperature: | -40°C~+85°C |
Please note: To access more detailed specifications and parameter tables, please proceed to the Download Center for viewing and downloading.
